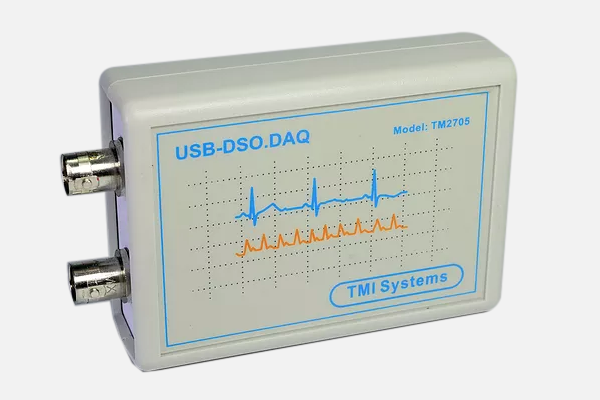

USB-DSO DAQ
TM2705
Specifications:
Channels : 02
Input : 0-8V input (Dual Channel)
Sampling Rate : 10MHz – For Repetitive Signals
500KHz – For Non-Repetitive Signals
Offset Adjustment : ±2V
PC Interface : USB
Power Supply : Powered from PC through USB
Measurements : Voltage, Time & FFT
Output Data Storage : CSV / MS3 format
Dimension : 90 X 65 X 28 mm (Appx)
Net Weight : < 100 Grams (Appx)
Operating Temperature : 10° C to 50° C
Storage Temperature : -20°C to 80°C
5MHz with AM and FM
TM2700
Specifications:
Channels : 02
Input : 0-5V input (Dual Channel)
Sampling Rate : 400 KHz
PC Interface : USB
Power Supply : Powered from PC through USB
Measurements : Min. Voltage, Max. Voltage, V p-p,
V avg, V rms, Frequency, X & Y cursors, Online / Offline FFT
Output Data Storage : CSV, MS3 format
Dimension : 90 X 65 X 28 mm (Appx)
Net Weight : 200 Grams (Appx)
Operating Temperature : 10° C to 50° C
Storage Temperature : -20°C to 80°C
