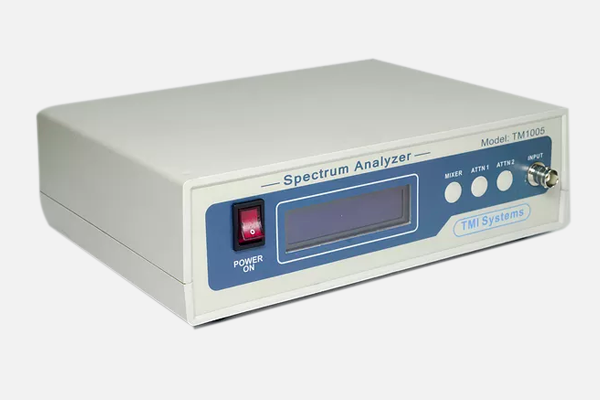

Spectrum Analyzer (1KHz -1GHz)
Features
PC based Unit
LCD display for indicating Power levels,Input Attenuation level and Mixer
Can be used for RF and Audio frequency applications
USB Interface
Dedicated Software
Output
Output of Spectrum Analyzer will be Spectrum Waveform
Output will be measured in decibels (dB)
Frequency Range/ Bands can be measured from the Spectrum
Signal Amplitude levels can be measured in terms of Modulation
LCD display for
- Attenuation ON/OFF (2dB,4dB,6dB)
- Mixer ON/OFF (125MHz)
Mixer is needed while working with signals lower than 50MHz
